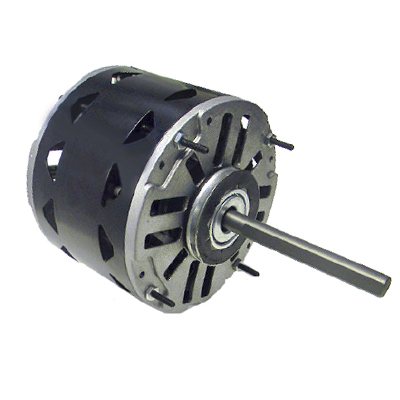

# SS3583 - 1/4 HP, 115 Volt
Product Code: SS3583
- Horsepower : 1/4
- Voltage : 115
- Amps : 3.8
- RPM : 1075
- Frequency : 60 Hz
- Length : 4.38"
- Enclosure : Open
- Shaft Dim. : 1/2" x 5.00"
- Type : Permanent Split Capacitor
- Speeds : 3
- Diameter : 5-5/8"
- Frame : 48
- Bearings : Sleeve
- Rotation : Reversible
- Protector : Thermally Protected
- Phase : 1
- Ambient Temp. : 40°C
- Capacitor Rating : 10MFD-370V
- Feature(s) : Resilient Rings, Reversing Plug, Extended Thru-Bolts
- Weight (lbs.) : 10
