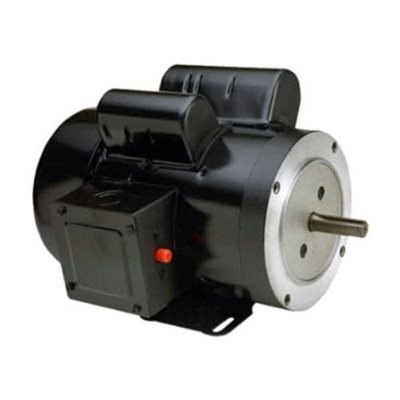

# B382 - 3 HP, 230 Volt

Press and move to zoom.

Mouse over image to zoom.

Click to enlarge

# B382 - 3 HP, 230 Volt

Product Code: B382

Horsepower : 3
Voltage : 230
Amps : 12.00
RPM : 3450
Frequency : 60 Hz
"C" Dim. : 15-7/32"
Enclosure : Totally Enclosed Fan Cooled
Shaft Dim. : 5/8" x 1-7/8"
Type : Capacitor Start/Capacitor Run
Speeds : 1
Diameter : 6-1/2"
Frame : 56HC
Bearings : Ball
Rotation : Reversible
Protector : Manual
Service Factor : 1.15
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Class 'B' Insulation, Keyed Shaft, Rigid Base
Weight (lbs.) : 48
