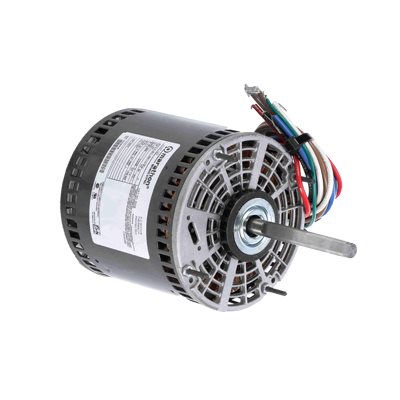

# X009 - 3/4 HP, 115 Volt

Press and move to zoom.

Mouse over image to zoom.

Click to enlarge

# X009 - 3/4 HP, 115 Volt

Product Code: X009

Horsepower : 3/4
Voltage : 115
Amps : 10.2
RPM : 1075
Frequency : 60 Hz
"C" Dim. : 10.75"
Enclosure : Open Air Over
Shaft Dim. : 1/2" X 4"
Type : Permanent Split Capacitor
Speeds : 3
Frame : 48Z
Bearings : Ball
Rotation : Reversible
Protector : Automatic
Service Factor : 1
Phase : 1
Ambient Temp. : 40°C
Capacitor Rating : 15 mfd @ 370V
Weight (lbs.) : 20
