- # X022 - 3/4 HP, 230 Volt

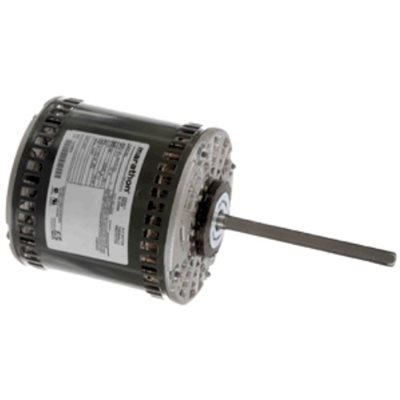

# X022 - 3/4 HP, 230 Volt
Product Code: X022
- Horsepower : 3/4
- Voltage : 230
- Amps : 3.7
- RPM : 1625
- Frequency : 60 Hz
- "C" Dim. : 11.94"
- Enclosure : Open Air Over
- Shaft Dim. : 1/2" X 5.5"
- Type : Permanent Split Capacitor
- Speeds : 3
- Frame : 48Y
- Bearings : Ball
- Rotation : Reversible
- Protector : Automatic
- Service Factor : 1
- Phase : 1
- Ambient Temp. : 40°C
- Capacitor Rating : 7.5 mfd @ 370V
- Weight (lbs.) : 18
