- # D1103 - 1/20 HP, 208-230 Volt

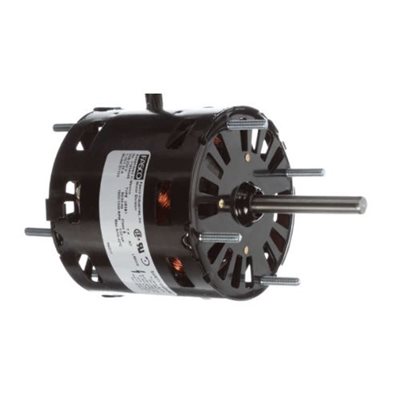

# D1103 - 1/20 HP, 208-230 Volt
Product Code: D1103
- Horsepower : 1/20
- Voltage : 208-230
- Amps : 1.35 / 1.15A
- RPM : 1500 / 1300
- Frequency : 60 Hz
- Length : 2.82
- Enclosure : Open Air Over
- Shaft Dim. : 5/16" X 2.25"
- Type : Shaded Pole
- Diameter : 3.3"
- Bearings : Sleeve
- Rotation : CCWSE
- Protector : Thermal
- Service Factor : 1
- Phase : 1
- Ambient Temp. : 40 °C
- Feature(s) : Extended Studs Shaft End and Lead End
- Weight (lbs.) : 3
