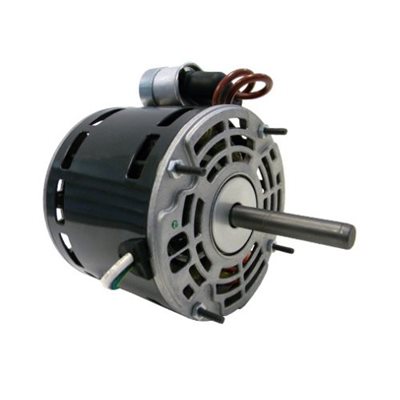

# J038P - 1/8 HP, 600 Volt
Product Code: J038P
- Horsepower : 1/8
- Voltage : 600
- Amps : 0.34
- RPM : 1640
- Frequency : 60 Hz
- Length : 4-1/8"
- Enclosure : Open Air Over
- Shaft Dim. : 1/2" x 2-1/2"
- Type : Permanent Split Capacitor
- Speeds : 1
- Diameter : 5.0"
- Frame : 42
- Bearings : Ball
- Rotation : CCWSE
- Protector : Automatic
- Service Factor : 1.00
- Phase : 1
- Ambient Temp. : 40°C
- Capacitor Rating : 3MFD-370V
- Feature(s) : Class 'B' Insulation, Capacitor Included
- Weight (lbs.) : 7.0
