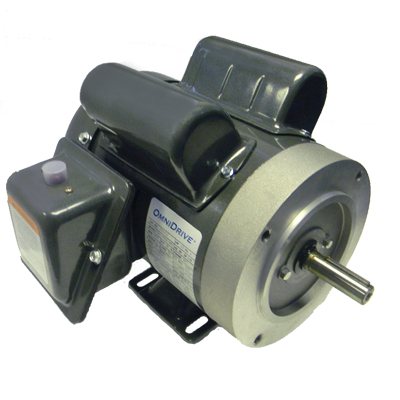

# FD166C - 2 HP, 115/208-230 Volt
Press and move to zoom.
Mouse over image to zoom.

# FD166C - 2 HP, 115/208-230 Volt

Product Code: FD166C


  • Horsepower : 2
  • Voltage : 115/208-230
  • Amps : 16.50/9.00
  • RPM : 1800
  • Frequency : 60 Hz
  • "C" Dim. : 13.7”
  • Enclosure : Totally Enclosed Fan Cooled
  • Type : Capacitor Start / Run
  • Speeds : 1
  • Diameter : 6-1/2"
  • Frame : 56HC
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : Manual Overload
  • Service Factor : 1.15
  • Phase : 1
  • Ambient Temp. : 40°C
  • Feature(s) : Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base
  • Weight (lbs.) : 47
