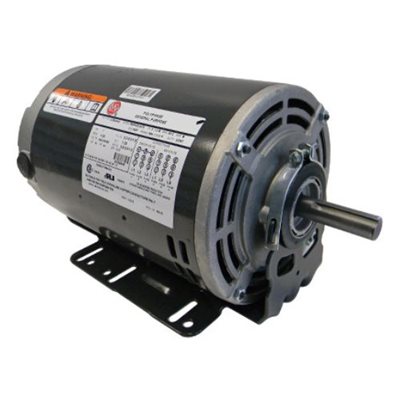

# D12S2A9 - 1/2 HP, 208-230/460 Volt
Press and move to zoom.
Mouse over image to zoom.
Click to enlarge
U.S. Motors

# D12S2A9 - 1/2 HP, 208-230/460 Volt

Product Code: D12S2A9

  • Horsepower : 1/2
  • Voltage : 208-230/460
  • Amps : 1.98-1.90/0.98
  • RPM : 1725
  • Frequency : 60 Hz
  • "C" Dim. : 11.81"
  • Enclosure : Open Drip Proof
  • Shaft Dim. : 5/8" x 1.94"
  • Type : Three Phase
  • Speeds : 1
  • Diameter : 6.5"
  • Frame : 56
  • Bearings : Ball
  • Rotation : Reversible
  • Protector : None
  • Service Factor : 1.25
  • Phase : 3
  • Ambient Temp. : 40°C
  • Feature(s) : Class 'B' Insulation, Resilient Base
  • Weight (lbs.) : 26
