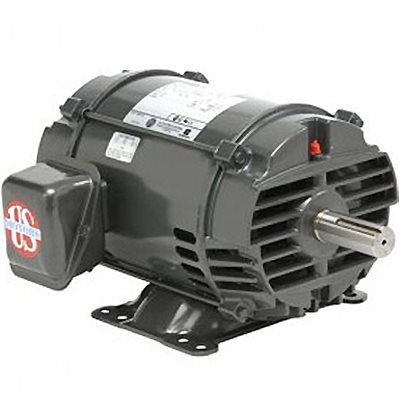

# D14P2B4 - 1/4 HP, 208-230/460 Volt
Product Code: D14P2B4
- Horsepower : 1/4
- Voltage : 208-230/460
- Amps : 1.3-1.3/.7
- RPM : 1725
- Frequency : 60 Hz
- "C" Dim. : 9.56"
- Enclosure : ODP
- Shaft Dim. : 1/2" x 1.5"
- Type : Three Phase
- Frame : 48
- Bearings : Ball
- Rotation : Reversible
- Protector : None
- Service Factor : 1.35
- Phase : 3
- Ambient Temp. : 40°C
- Weight (lbs.) : 17
