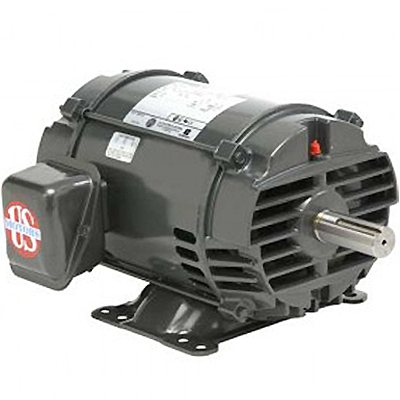

# D15P2D - 15 HP, 208-230/460 Volt
Product Code: D15P2D
- Horsepower : 15
- Voltage : 208-230/460
- Amps : 40.00-37.00/18.30
- RPM : 1800
- Frequency : 60 Hz
- "C" Dim. : 22.56"
- Enclosure : Open Drip-Proof
- Shaft Dim. : 1-5/8" x 3-3/4"
- Type : Three Phase
- Speeds : 1
- Frame : 254T
- Efficiency : 93.0%
- Bearings : Ball
- Rotation : Reversible
- Protector : None
- Service Factor : 1.15
- Phase : 3
- Ambient Temp. : 40°C
- Feature(s) : Rigid Base, Class 'F' Insulation - Class 'B' Rise at Service Factor, F-1 Assembly, Aluminum End-Shields with Steel Inserts, Light Weight Rolled Steel Frame, Suitable for use with Inverters (VFD), Double Shielded Bearings, Regreasable Bearings, Lifting Provisions
- Weight (lbs.) : 150
