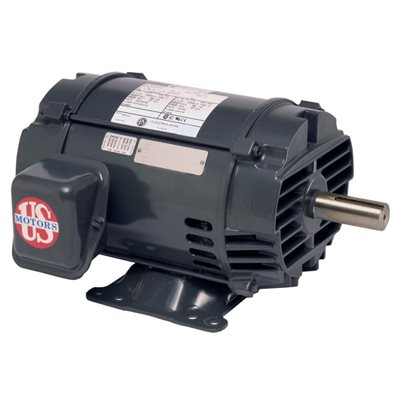

# D15P3G - 15 HP, 575 Volt

Product Code: D15P3G

Horsepower : 15
Voltage : 575
Amps : 14.7
RPM : 1185
Frequency : 60 Hz
"C" Dim. : 24.88"
Enclosure : ODP
Shaft Dim. : 1-7/8" x 4.38"
Type : Three Phase
Frame : 284T
Bearings : Ball
Rotation : Reversible
Service Factor : 1.15
Phase : 3
Ambient Temp. : 40°C
Weight (lbs.) : 300
