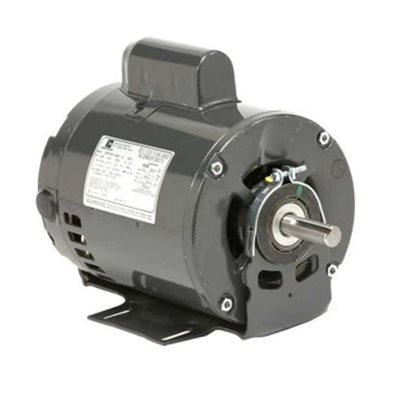

# D1CA3JH9 - 1 HP, 115/208-230 Volt
Product Code: D1CA3JH9
- Horsepower : 1
- Voltage : 115/208-230
- Amps : 12.60/6.40-6.30
- RPM : 1200
- Frequency : 60 Hz
- "C" Dim. : 13.80"
- Enclosure : Open Drip-Proof
- Type : Capacitor Start
- Speeds : 1
- Diameter : 6.5"
- Frame : 56H
- Bearings : Ball
- Rotation : Reversible
- Protector : Automatic
- Service Factor : 1.15
- Phase : 1
- Ambient Temp. : 40°C
- Feature(s) : Class 'B' Insulation, Resilient Base
- Weight (lbs.) : 42
