5-5/8" Dia. Motors (NEMA 48)

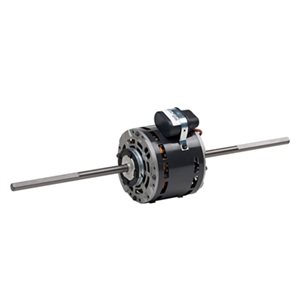

# EM-1887 - 1/3 HP, 230 Volt

# EM-1887 - 1/3 HP, 230 Volt
U.S. Motors
Code: EM-1887
Amps: 2.2 Freq: 60 Hz RPM: 1625
Speeds: 3 Rot: CCWLE Brg: Ball
Type: Permanent Split Capacitor Encl: Open Air Over

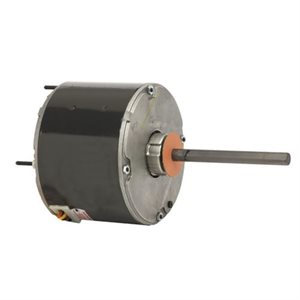

# EM-1890 - 1/4 HP, 208-230 Volt

# EM-1890 - 1/4 HP, 208-230 Volt
U.S. Motors
Code: EM-1890
Amps: 1.4 Freq: 60 Hz RPM: 1625
Speeds: 1 Rot: REV Brg: Ball
Type: Permanent Split Capacitor Encl: TEAO

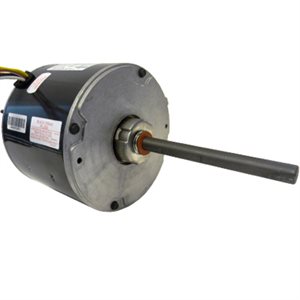

# EM-1891 - 1/3 HP, 208-230 Volt

# EM-1891 - 1/3 HP, 208-230 Volt
U.S. Motors
Code: EM-1891
Amps: 1.60 Freq: 60 Hz RPM: 1625
Shaft: 1/2" x 5.00" Rot: REV Brg: Ball
Type: P.S.C. Encl: Totally Enclosed

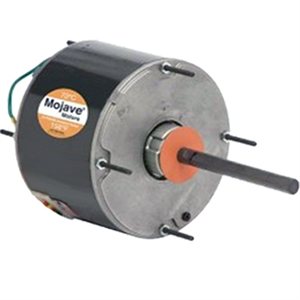

# EM-1892 - 1/2 HP, 208-230 Volt

# EM-1892 - 1/2 HP, 208-230 Volt
U.S. Motors
Code: EM-1892
Amps: 3.00 Freq: 60 Hz RPM: 1625
Shaft: 1/2" x 5.00" Rot: REV Brg: SAB
Type: P.S.C. Encl: Enclosed

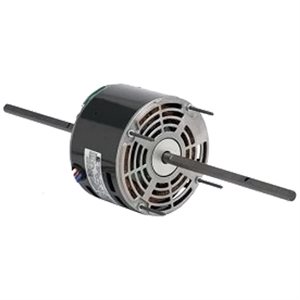

# EM-1894 - 3/4 HP, 208-230 Volt

# EM-1894 - 3/4 HP, 208-230 Volt
U.S. Motors
Code: EM-1894
Amps: 5.00 Freq: 60 Hz RPM: 1075
Shaft: 6-1/4" x 1/2" x 6-1/4" Rot: CCWLE Brg: SAB
Type: P.S.C. Encl: Open

# EM-1899 - 1/2 HP, 115/230 Volt

# EM-1899 - 1/2 HP, 115/230 Volt
U.S. Motors
Code: EM-1899
Amps: 5.60/2.80 Freq: 60 Hz RPM: 1725
Shaft: 1/2" x 4.50" Rot: REV Brg: Ball
Type: P.S.C. Encl: TEAO

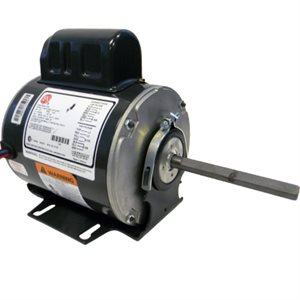

# EM-1900 - 1/3 HP, 115/208-230 Volt

# EM-1900 - 1/3 HP, 115/208-230 Volt
U.S. Motors
Code: EM-1900
Amps: 4.20/2.10 Freq: 60 Hz RPM: 1140
Shaft: 1/2" x 4.50" Rot: REV Brg: Ball
Type: P.S.C. Encl: TEAO

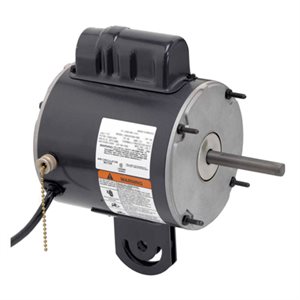

# EM-1928 - 1/3 HP, 115 Volt

# EM-1928 - 1/3 HP, 115 Volt
U.S. Motors
Code: EM-1928
Amps: 4.8 Freq: 60 Hz RPM: 1800
"C" Dim: 10.14" Rot: Rev Brg: Ball
Type: Split Phase Encl: ODP

# EM-1940 - 1/2 HP, 115 Volt

# EM-1940 - 1/2 HP, 115 Volt
U.S. Motors
Code: EM-1940
Amps: 6.4 Freq: 60 Hz RPM: 825
Speeds: 1 Rot: CWSE Brg: Ball
Type: Permanent Split Capacitor Encl: TEAO

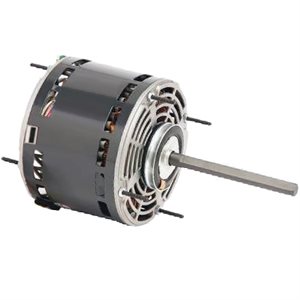

# EM-1972 - 1/3 HP, 208-230 Volt

# EM-1972 - 1/3 HP, 208-230 Volt
U.S. Motors
Code: EM-1972
Amps: 1.90 Freq: 60 Hz RPM: 1075/3
Shaft: 1/2” x 5.00” Rot: REV Brg: SAB
Type: P.S.C. Encl: Open Air Over

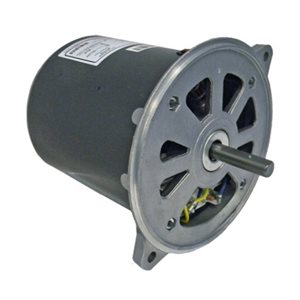

# EM-2302 - 1/4 HP, 115 Volt

# EM-2302 - 1/4 HP, 115 Volt
U.S. Motors
Code: EM-2302
Amps: 3.70 Freq: 60 Hz RPM: 3450
Shaft: 1/2" x 2" Rot: REV Brg: Ball
Type: Split Phase/Capacitor Start Encl: TENV

# EM-2887 - 1/2 HP, 115 Volt

# EM-2887 - 1/2 HP, 115 Volt
U.S. Motors
Code: EM-2887
Amps: 7.80 Freq: 60 Hz RPM: 1725
Shaft: 1/2” x 1.50" Rot: REV Brg: Ball
Type: Split Phase Encl: ODP

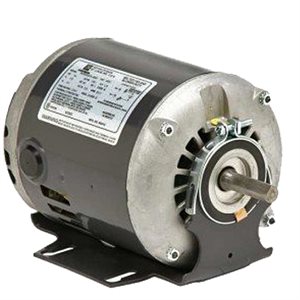

# EM-2888 - 1/3 HP, 115 Volt

# EM-2888 - 1/3 HP, 115 Volt
U.S. Motors
Code: EM-2888
Amps: 5.4 Freq: 60 Hz RPM: 1725
Shaft: 1/2" x 1.50" Rot: REV Brg: Ball
Type: Split Phase Encl: ODP

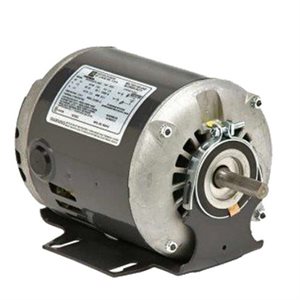

# EM-2889 - 1/4 HP, 115 Volt

# EM-2889 - 1/4 HP, 115 Volt
U.S. Motors
Code: EM-2889
Amps: 4.4 Freq: 60 Hz RPM: 1725
Shaft: 1/2" x 1.50" Rot: REV Brg: Ball
Type: Split Phase Encl: ODP

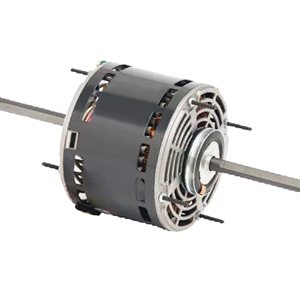

# EM-3133 - 1/6 HP, 208-230 Volt

# EM-3133 - 1/6 HP, 208-230 Volt
U.S. Motors
Code: EM-3133
Amps: 1.50 Freq: 60 Hz RPM: 1075/3
Shaft: 8.0" x 1/2" x 8.0" Rot: CCWLE Brg: SAB
Type: P.S.C. Encl: Open

# EM-3134 - 1/4 HP, 208-230 Volt

# EM-3134 - 1/4 HP, 208-230 Volt
U.S. Motors
Code: EM-3134
Amps: 1.90 Freq: 60 Hz RPM: 1075/3
Shaft: 8.0" x 1/2" x 8.0" Rot: CCWLE Brg: SAB
Type: P.S.C. Encl: Open

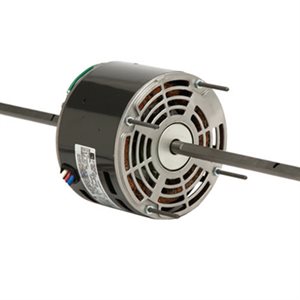

# EM-3136 - 1/2 HP, 208-230 Volt

# EM-3136 - 1/2 HP, 208-230 Volt
U.S. Motors
Code: EM-3136
Amps: 4.50 Freq: 60 Hz RPM: 1075/3
Shaft: 1/2" x 8.00" Rot: CCWLE Brg: SAB
Type: P.S.C. Encl: Open Air Over

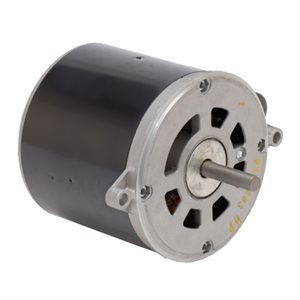

# EM-3196 - 1/8 HP, 115 Volt

# EM-3196 - 1/8 HP, 115 Volt
U.S. Motors
Code: EM-3196
Amps: 2.4 Freq: 60 Hz RPM: 1725
Speeds: 1 Rot: Rev Brg: Ball
Type: Split Phase Encl: TENV

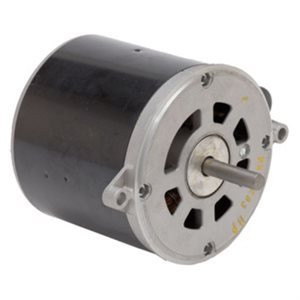

# EM-3252 - 1/6 HP, 115 Volt

# EM-3252 - 1/6 HP, 115 Volt
U.S. Motors
Code: EM-3252
Amps: 3.1 Freq: 60 Hz RPM: 1725
Shaft Length: 1/2" x 2" Rot: REV Brg: Ball
Type: Capacitor Start Encl: TENV

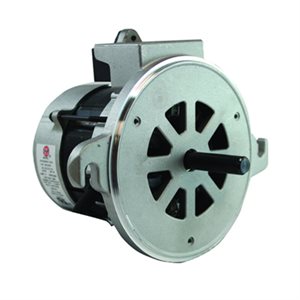

# EM-3274 - 1/7 HP, 115 Volt

# EM-3274 - 1/7 HP, 115 Volt
U.S. Motors
Code: EM-3274
Amps: 1.7 Freq: 60 Hz RPM: 3450
Shaft: 1/2" x 2" Rot: CCWSE Brg: Ball
Type: Permanent Split Capacitor Encl: Open

# EM-3275 - 3/4 HP, 115 Volt

# EM-3275 - 3/4 HP, 115 Volt
U.S. Motors
Code: EM-3275
Amps: 10.00 Freq: 60 Hz RPM: 1075/4
Shaft: 1/2” x 2-1/2” Rot: REV Brg: Ball
Type: P.S.C. Encl: Open

# EM-3402 - 1/10 HP, 208-230 Volt

# EM-3402 - 1/10 HP, 208-230 Volt
U.S. Motors
Code: EM-3402
Amps: 0.80-0.80 Freq: 60 Hz RPM: 1100
Shaft: 1/2" x 1.60" Rot: REV Brg: SAB
Type: P.S.C. Encl: TEAO

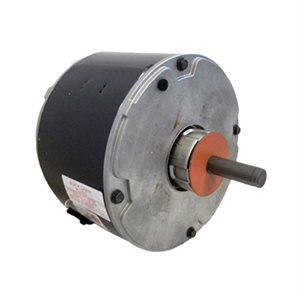

# EM-3405 - 1/6 HP, 208-230 Volt

# EM-3405 - 1/6 HP, 208-230 Volt
U.S. Motors
Code: EM-3405
Amps: 0.80 Freq: 60 Hz RPM: 1100/3
Shaft: 1/2" x 1-3/5" Rot: CWLE Brg: Sleeve
Type: P.S.C. Encl: TEAO

# EM-3615 - 1/6 HP, 115/208-230 Volt

# EM-3615 - 1/6 HP, 115/208-230 Volt
U.S. Motors
Code: EM-3615
Amps: 3.6/1.7-1.8 Freq: 60 Hz RPM: 1725
Shaft: 1/2" x 1.875" Rot: REV Brg: Ball
Type: Split Phase Encl: ODP
