Gear Reducers


  • Display type
  • Results per page
  • Sort by
# WGR050-10-56C
  • # WGR050-10-56C

  • Ratio:
    10:1  Input: 56C  Size: 50
    Output RPM:
     175  MAX. Input HP: 2.06
    Output Torque (in.-lbs.): 637
  • OmniDrive
  • Code : WGR050-10-56C
# WGR050-100-56C
  • # WGR050-100-56C

  • Ratio:
    100:1  Input: 56C  Size: 50
    Output RPM:
     18  MAX. Input HP: 0.28
    Output Torque (in.-lbs.): 487
  • OmniDrive
  • Code : WGR050-100-56C
# WGR050-15-56C
  • # WGR050-15-56C

  • Ratio:
    15:1  Input: 56C  Size: 50
    Output RPM:
     117  MAX. Input HP: 1.48
    Output Torque (in.-lbs.): 655
  • OmniDrive
  • Code : WGR050-15-56C
# WGR050-20-56C
  • # WGR050-20-56C

  • Ratio:
    20:1  Input: 56C  Size: 50
    Output RPM:
     88  MAX. Input HP: 1.14
    Output Torque (in.-lbs.): 646
  • OmniDrive
  • Code : WGR050-20-56C
# WGR050-25-56C
  • # WGR050-25-56C

  • Ratio:
    25:1  Input: 56C  Size: 50
    Output RPM:
     70  MAX. Input HP: 0.90
    Output Torque (in.-lbs.): 619
  • OmniDrive
  • Code : WGR050-25-56C
# WGR050-30-56C
  • # WGR050-30-56C

  • Ratio: 30:1  Input: 56C  Size: 50
    Output RPM: 58  MAX. Input HP: 0.96
    Output Torque (in.-lbs.):
    743
  • OmniDrive
  • Code : WGR050-30-56C
# WGR050-40-56C
  • # WGR050-40-56C

  • Ratio:
    40:1  Input: 56C  Size: 50
    Output RPM:
    44  MAX. Input HP: 0.70
    Output Torque (in.-lbs.): 672
  • OmniDrive
  • Code : WGR050-40-56C
# WGR050-5-56C
  • # WGR050-5-56C

  • Ratio: 5:1  Input: 56C  Size: 50
    Output RPM:
     350  MAX. Input HP: 3.43
    Output Torque (in.-lbs.):
    549
  • OmniDrive
  • Code : WGR050-5-56C
# WGR050-50-56C
  • # WGR050-50-56C

  • Ratio:
    50:1
    Input: 56C  Size: 50
    Output RPM: 35  MAX. Input HP: 0.57
    Output Torque (in.-lbs.): 646
  • OmniDrive
  • Code : WGR050-50-56C
# WGR050-60-56C
  • # WGR050-60-56C

  • Ratio:
    60:1  Input: 56C  Size: 50
    Output RPM:
     29  MAX. Input HP: 0.47
    Output Torque (in.-lbs.): 602
  • OmniDrive
  • Code : WGR050-60-56C
# WGR050-7.5-56C
  • # WGR050-7.5-56C

  • Ratio:
    7.5:1  Input: 56C  Size: 50
    Output RPM:
     233  MAX. Input HP: 2.64
    Output Torque (in.-lbs.): 628
  • OmniDrive
  • Code : WGR050-7.5-56C
# WGR050-80-56C
  • # WGR050-80-56C

  • Ratio:
    80:1  Input: 56C  Size: 50
    Output RPM:
     22  MAX. Input HP: 0.38
    Output Torque (in.-lbs.): 575
  • OmniDrive
  • Code : WGR050-80-56C

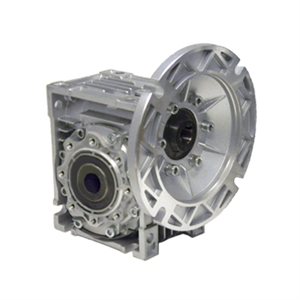

# WGR063-30-56C
  • # WGR063-30-56C

  • Ratio:
    30:1  Input: 56C  Size: 63
    Output RPM:
    58  MAX. Input HP: 1.77
    Output Torque (in.-lbs.): 1416
  • OmniDrive
  • Code : WGR063-30-56C
