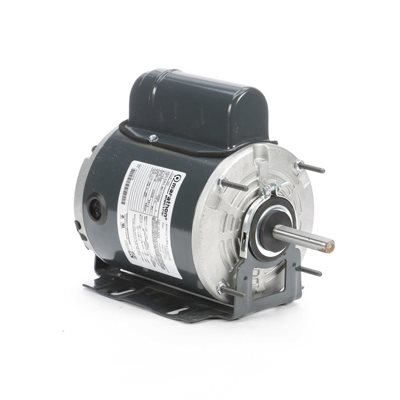

# X030 - 1/4 HP, 115/230 Volt

Press and move to zoom.

Mouse over image to zoom.

Click to enlarge

# X030 - 1/4 HP, 115/230 Volt

Product Code: X030

Horsepower : 1/4
Voltage : 115/230
Amps : 3.6/1.8
RPM : 1625
Frequency : 60 Hz
"C" Dim. : 11.06"
Enclosure : TEAO
Shaft Dim. : 1/2" x 2.5"
Frame : 48Y
Bearings : Ball
Rotation : Reversible
Protector : Automatic
Service Factor : 1
Phase : 1
Ambient Temp. : 40°C
Weight (lbs.) : 20
