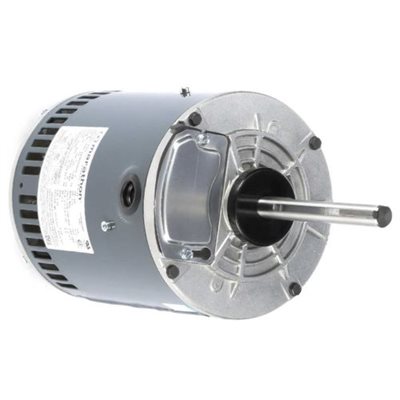

# X511 - 1/3 HP, 208-230/460 Volt
Product Code: X511
- Horsepower : 1/3
- Voltage : 208-230/460
- Amps : 2.3-2.5/1.3
- RPM : 850
- Frequency : 60 HZ
- "C" Dim. : 14.56"
- Enclosure : Open Air Over
- Shaft Dim. : 5/8" x 5"
- Type : Three Phase
- Frame : 56Y
- Bearings : Ball
- Rotation : Reversible
- Protector : AUTO
- Service Factor : 1
- Phase : 3
- Ambient Temp. : 70°C
- Weight (lbs.) : 23
