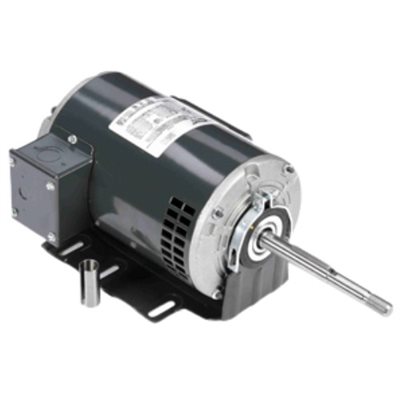

# X602 - 1/2 HP, 115/208-230 Volt

Product Code: X602

Horsepower : 1/2
Voltage : 115/208-230
Amps : 8.0/4.0
RPM : 1725
Frequency : 60 Hz
"C" Dim. : 15.41"
Enclosure : ODP
Shaft Dim. : STEP / THREADED X 5.66"
Type : Capacitor Start
Frame : 56Z
Bearings : Ball
Rotation : CCWSE
Protector : Auto
Service Factor : 1.25
Phase : 1
Ambient Temp. : 40°C
Feature(s) : Replaces Huebsch commercial laundry dryer motors, Special threaded shaft extension, Has 3/4” shaft adapter included
Weight (lbs.) : 24
